MARGRET
Measurement of greened/non-greened objects for the adaptation of calculation models

Development of measurement methods to determine the influence of greening measures on greened versus non-greened reference objects with contemporary building standards under uniform framework conditions. Proposals for adaptations of calculation models or standards to e.g. enable an integration in the energy performance certificate.

ResearchMonitoring

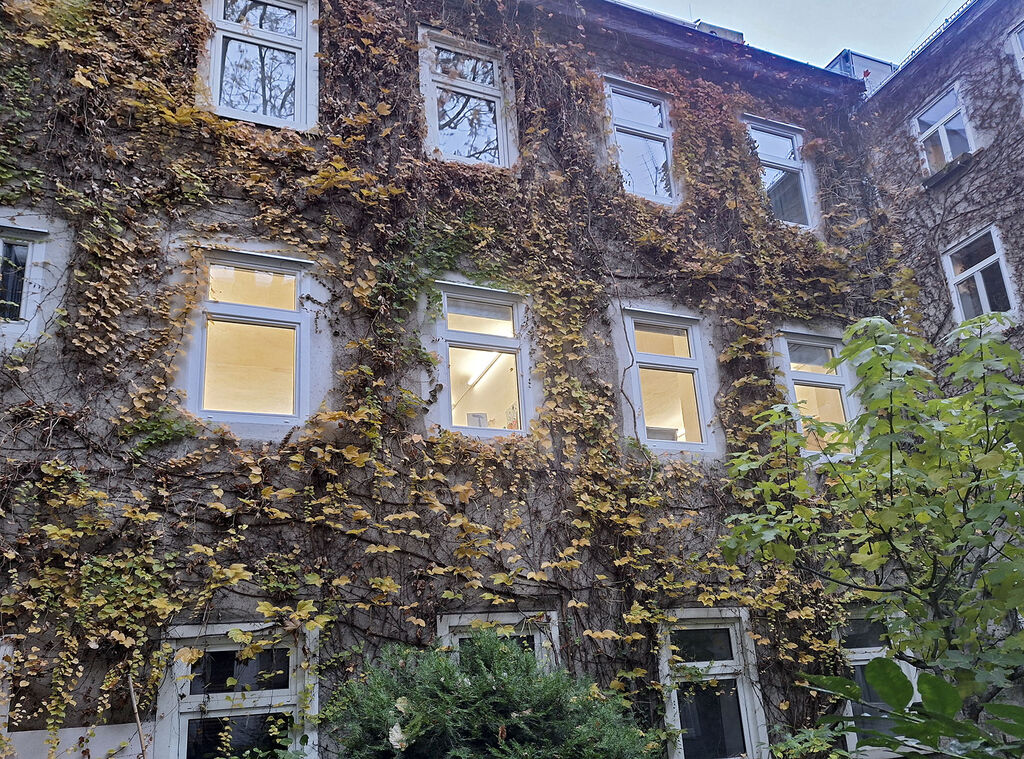

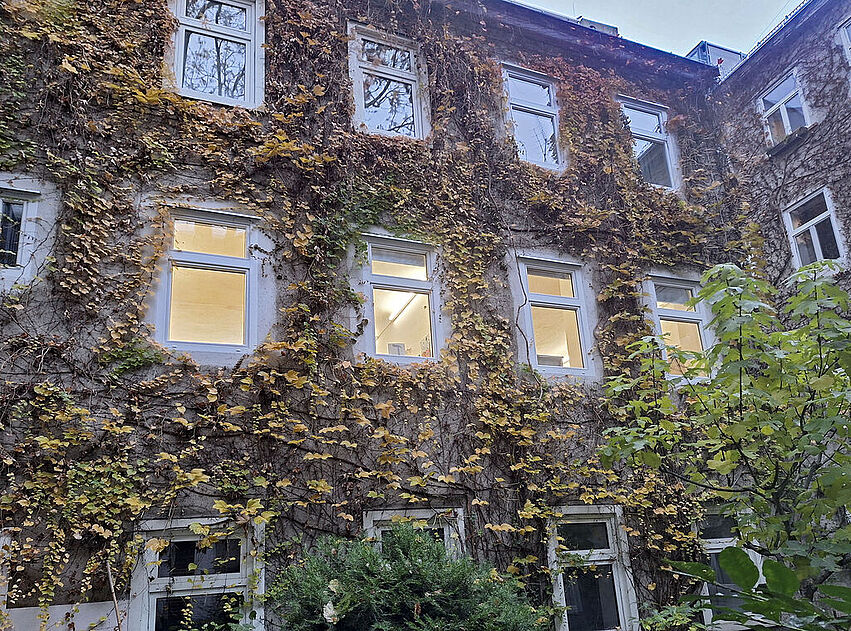

Building-integrated greening measures such as roof and façade greening can make an important contribution to an energy-efficient and sustainable building design. Evaporative cooling, shading, insulation and improved microclimate make it possible to expand the energy optimisation potential in addition to structural and building services measures. Regarding to higher outdoor temperatures due to advancing climate change, it is crucial to use all available options. At present, however, planners, builders, etc. lack the possibility to quantify and compare the influence of greening measures on buildings, e.g. on the basis of the energy performance certificate.

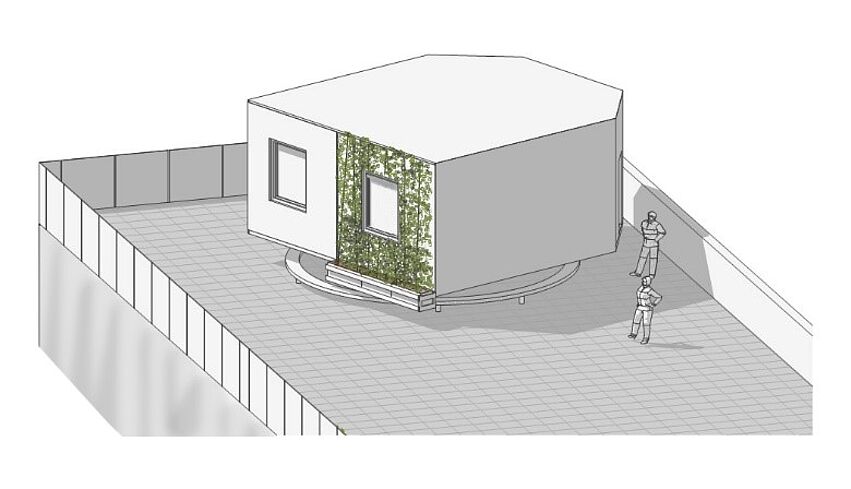

The aim of MARGRET is to propose adaptations in the calculation models or standards and, in parallel, to define a procedure for measuring the effects. For this purpose, greening is measured on objects with contemporary building standards and under uniform framework conditions. The two thermally decoupled rooms with identical façade sizes and openings of the AEE INTEC façade test box will be used as greened and non-greened reference objects. The planned investigations focus primarily on the effects of different types of façade greening. In addition, a part of the roof terrace will be temporarily greened in order to test a green roof in comparison to a non-greened roof. The façade surfaces can be tracked to the sun and thus enable investigations in several exposures

The aim of MARGRET is to propose adaptations in the calculation models or standards and, in parallel, to define a procedure for measuring the effects. For this purpose, greening is measured on objects with contemporary building standards and under uniform framework conditions. The two thermally decoupled rooms with identical façade sizes and openings of the AEE INTEC façade test box will be used as greened and non-greened reference objects. The planned investigations focus primarily on the effects of different types of façade greening. In addition, a part of the roof terrace will be temporarily greened in order to test a green roof in comparison to a non-greened roof. The façade surfaces can be tracked to the sun and thus enable investigations in several exposures.

Project team

IBO - Österreichisches Institut für Bauen und Ökologie GmbH (project lead)

AEE - Institut für Nachhaltige Technologien

GRÜNSTATTGRAU Forschungs- und Innovations- GmbH

BOKU Institut für Ingenieurbiologie und Landschaftsbau (third party provider)

Research period

October 2023 – September 2025

Funding Institutions

The call for proposals "Technologies and innovations for the climate-neutral city" is part of the RTI priority programme "Climate-neutral city" of the Federal Ministry for Climate Action, Environment, Energy, Mobility, Innovation and Technology (BMK). The Austrian Research Promotion Agency (FFG) and Austria Wirtschaftsservice Gesellschaft mbH (AWS) are responsible for the implementation of the programme on behalf of the BMK.
